Solution Spotlight – Multi-Cloud Orchestration Platform

Overview

Business Problem

Organizations operating in multi-cloud environments face significant challenges when deploying and managing infrastructure at scale. Development teams struggle with inconsistent deployment patterns across different cloud providers, lack of standardization in infrastructure definitions, and difficulty maintaining version control over infrastructure components. Teams waste valuable time recreating similar infrastructure patterns for each new project, and security and compliance teams struggle to enforce consistent standards across diverse cloud resources. The absence of a unified orchestration platform leads to configuration drift, increased operational overhead, and difficulty tracking infrastructure changes over time.

Many organizations attempt to solve these challenges through ad-hoc scripting, manual infrastructure provisioning, or fragmented tooling approaches. Teams often maintain separate Infrastructure as Code (IaC) repositories for each project with duplicated code and inconsistent patterns. Some organizations implement rigid, monolithic deployment frameworks that lack flexibility and extensibility, making it difficult to adapt to new requirements or cloud providers. Others rely on manual parameter management through spreadsheets or configuration files scattered across multiple repositories, leading to errors and inconsistencies. These approaches create silos between teams, increase deployment times, and make it nearly impossible to enforce consistent security and compliance controls across the organization.

Our Solution

In this solution, we provide a better way to address the problems outlined above through the Multi-Cloud Orchestration Platform (MCOP). MCOP introduces a hierarchical, component-based architecture that separates infrastructure concerns into reusable, versioned primitives that can be combined into patterns, orchestrated through workflows, and executed via manifests. Rather than maintaining monolithic infrastructure code, teams can build from a library of tested, versioned components that encapsulate best practices for specific infrastructure resources. The platform provides a standardized metadata model stored in DynamoDB with full version control, enabling teams to track changes, roll back deployments, and maintain multiple versions of infrastructure definitions simultaneously. MCOP’s adapter-based architecture abstracts cloud provider specifics, allowing organizations to define infrastructure patterns once and deploy them across AWS, Azure, GCP, or other cloud platforms with minimal modification.

Prescriptive Guidance

Before diving into the Multi-Cloud Orchestration Platform (MCOP), it is important to acknowledge the foundational concepts that enable effective infrastructure orchestration at scale. Organizations must understand the relationships between reusable infrastructure components (primitives), how these components combine to form deployment patterns, and how workflows orchestrate these patterns with proper backend configuration and state management. Additionally, teams should recognize that successful multi-cloud orchestration requires a clear separation of concerns between infrastructure definitions, parameter management, and execution logic. MCOP builds upon these principles by providing a versioned, metadata-driven architecture that maintains flexibility while enforcing consistency. This playbook will guide you through MCOP’s component hierarchy, explain how adapters enable multi-cloud support, demonstrate parameter validation and substitution mechanisms, and show how the platform integrates with serverless execution infrastructure for scalable, automated deployments.

Definitions

In this section, we define the key terms that will be referenced throughout the solution. While some terms may seem common to you, they may be new terms to the reader! This ensures we are all on the same page.

  • Primitive – A primitive is the foundational building block of the MCOP architecture, representing a single reusable infrastructure or CI/CD component. Primitives are versioned, cloud-provider-specific implementations stored in S3 that contain template files (such as Terraform modules or Jenkinsfiles) along with their input and output definitions. Examples include a VPC primitive, an S3 bucket primitive, or a build pipeline primitive.
  • Adapter – An adapter is a mapping component that connects a specific cloud provider (such as AWS, Azure, or GCP) to a primitive type (such as Terraform or Jenkins). Adapters enable MCOP to abstract cloud provider specifics and determine which primitive implementation to use for a given provider and primitive type combination.
  • Pattern – A pattern combines multiple related primitives (elements) into a cohesive deployment unit with parameter definitions and validation rules. Patterns define how primitives work together, manage parameter flow between components, and validate parameter values against enumerated lists, regex patterns, or exact string matches stored in DynamoDB.
  • Workflow – A workflow orchestrates the execution of one or more patterns with backend configuration for state management. Workflows define the deployment sequence, specify Terraform backend settings (such as S3 buckets and DynamoDB tables for state locking), and optionally associate with a cloud provider for organizational purposes.
  • Manifest – A manifest is the highest-level orchestration component that executes one or more workflows with environment-specific configuration and parameter overrides. Manifests define the complete deployment specification for an application or service, including all necessary workflows, global configuration values, and namespace isolation.
  • Versioned Schema – MCOP implements a multi-version data model in DynamoDB using composite keys (object_type#object_name) and version sort keys, allowing multiple versions of any object (primitive, pattern, workflow, or manifest) to coexist. This enables teams to maintain backward compatibility while evolving infrastructure definitions.
  • Parameter Substitution – The mechanism by which MCOP resolves parameter values using ${param} or {param} syntax, supporting references between components (indicated by periods in parameter names) and configuration-based value injection throughout the manifest execution lifecycle.
  • S3-Backed Primitive – A primitive implementation that downloads infrastructure templates from S3 into ephemeral storage during execution, designed specifically for containerized environments like ECS where persistent local storage is not available.
  • Execution Record – A DynamoDB entry in the executions table that tracks the status, timestamps, and metadata for each manifest execution triggered through the Lambda function and executed in ECS Fargate tasks.

Best Practices / Design Principles

In this section, we cover the best practices implemented in the MCOP solution. This section touches on many of the best practices that are relevant to multi-cloud infrastructure orchestration. While highlighting best practices, we introduce conceptual ideas related to the solution so that later sections can focus on the technical implementation approach.

Component Versioning and Immutability
Infrastructure definitions must be versioned and immutable to enable safe deployments and reliable rollbacks. MCOP allows for this by versioning all objects in DynamoDB and allowing pinned versions to be specified in the manifest.

Separation of Concerns Through Abstraction Layers
Effective infrastructure platforms must separate different concerns into distinct abstraction layers to promote reusability and maintainability.

Centralized Metadata with Distributed Execution
Modern infrastructure platforms should centralize metadata management while distributing execution to maintain consistency and scale effectively.

Parameter Validation and Type Safety
Infrastructure deployments require rigorous parameter validation to prevent configuration errors and security vulnerabilities.

Cloud Provider Abstraction Without Vendor Lock-In
Multi-cloud strategies require abstraction mechanisms that reduce vendor-specific complexity without creating proprietary lock-in.

MCOP Platform Architecture and Implementation

The MCOP platform architecture represents a comprehensive approach to multi-cloud infrastructure orchestration that addresses the core challenges organizations face when managing infrastructure at scale. This section covers the complete implementation of the platform, from the foundational component model to the serverless execution infrastructure. Understanding this architecture is critical for organizations seeking to implement repeatable, governed infrastructure deployment patterns across multiple cloud providers and environments. The solution demonstrates how metadata-driven orchestration, combined with serverless execution infrastructure, creates a scalable platform that maintains flexibility while enforcing organizational standards and best practices.

Components

  • Amazon DynamoDB – Serves as the centralized metadata repository for all MCOP objects including primitives, adapters, patterns, workflows, manifests, parameter validation rules, and execution records. DynamoDB provides the versioned schema foundation using composite partition keys (object_type#object_name) and version sort keys, enabling multiple versions of each object to coexist with efficient queries through Global Secondary Indexes for object name and object type lookups
  • Amazon S3 – Stores versioned primitive templates organized by type, provider, primitive name, and version in a hierarchical folder structure. The S3-backed primitive architecture enables containerized execution environments to download infrastructure templates on-demand, supporting Terraform modules, Jenkinsfiles, and other infrastructure-as-code artifacts without requiring persistent storage
  • Amazon ECS Fargate – Provides the serverless compute infrastructure for manifest execution, running MCOP containers in ephemeral tasks that download primitives from S3, retrieve metadata from DynamoDB, execute infrastructure deployment workflows, and update execution status. Fargate eliminates the need to manage underlying EC2 instances while providing network isolation through VPC integration with security groups and subnets
  • AWS Lambda – Implements the trigger function that receives manifest execution requests, generates unique execution IDs, creates execution records in DynamoDB with INITIATED status, and launches ECS Fargate tasks with environment variable overrides for manifest name, version, output path, and parameter overrides
  • Amazon ECR – Hosts the MCOP Docker images built with linux/amd64 platform specification for ECS compatibility, supporting versioned image tags (latest and timestamped) for controlled deployments and rollback capabilities
  • Composite Key Schema – DynamoDB partition key combining object_type and object_name (format: “object_type#object_name”) that enables efficient storage and retrieval of multiple object versions while maintaining clear namespace separation
  • Global Secondary Indexes – DynamoDB indexes including ObjectNameIndex and ObjectTypeIndex that enable efficient queries for listing all versions of a specific object or retrieving all objects of a particular type without scanning the entire table
  • Parameter Validation Repository – Specialized DynamoDB table and repository implementation supporting enum, regex, and string validation rules that enforce parameter constraints across all infrastructure deployments
  • Version Management – Systematic versioning approach where each update to primitives, patterns, workflows, or manifests creates a new version entry rather than overwriting existing records, enabling safe parallel execution of different versions and reliable rollback capabilities

How it works

The MCOP platform operates through a hierarchical component model combined with serverless execution infrastructure. The following flow describes how infrastructure deployments move from high-level manifest definitions through pattern composition to primitive execution and artifact generation.

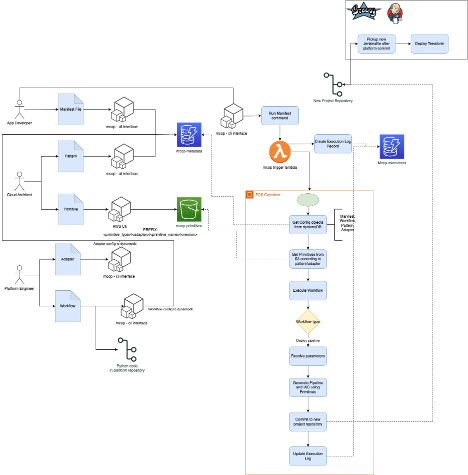

              Figure-01

              Component Architecture Flow

              1. Manifest Definition – The top-level orchestration object that references one or more workflows by name and version, provides global configuration values for parameter substitution, and defines namespace isolation for the deployment. Manifests support runtime parameter overrides that cascade down through workflows to patterns and primitives
              2. Workflow Orchestration – Workflows retrieved from DynamoDB define which patterns to execute, specify Terraform backend configuration for state management (S3 bucket, region, DynamoDB table for locking), and optionally associate with a cloud provider for organizational purposes. Each workflow executes its patterns sequentially, passing resolved parameters and backend configuration to each pattern
              3. Pattern Composition – Patterns combine multiple primitives (elements) with parameter definitions and validation rules. The pattern loads its adapter based on provider and primitive_type fields, retrieves each primitive by name and version, resolves parameters through substitution and reference resolution, validates parameter values against DynamoDB validation rules, and sets parameters on each primitive instance
              4. Adapter Resolution – Adapters map the combination of provider (AWS, Azure, GCP) and primitive_type (Terraform, Jenkins) to the appropriate primitive class implementation. The adapter architecture enables MCOP to support multiple cloud providers and primitive types without hardcoding provider-specific logic throughout the codebase
              5. Primitive Instantiation – S3-backed primitives download their template files from S3 using a hierarchical path structure (type/provider/name/version/), parse template files to extract inputs and outputs, accept parameter values from the pattern, and generate infrastructure artifacts (Terraform .tf.json files, Jenkinsfiles, etc.) in the specified output directory
              6. Parameter Validation – The ParameterValidator class distinguishes between parameter references (containing periods, resolved from other components) and concrete values (validated against DynamoDB rules). Validation rules support enum validation (allowed value lists), regex validation (pattern matching), and exact string validation for enforcing organizational standards
              7. Artifact Generation – Terraform primitives generate module.tf.json files with parameter values, main.tf.json files with resource definitions, and backend configuration files for state management. Jenkins primitives generate Jenkinsfiles with parameter substitution applied.

              Execution Infrastructure Flow:

              1. Lambda Trigger – The mcop-ecs-trigger Lambda function receives requests containing manifest_file name, optional manifest_version, output_path, and parameter overrides. The function generates a unique execution ID with timestamp, creates an execution record in the DynamoDB executions table with INITIATED status, and triggers an ECS Fargate task with environment variables for all execution parameters
              2. ECS Task Execution – The Fargate task runs the MCOP container built from the Dockerfile, which includes the Python wheel package and entrypoint script. The entrypoint reads MANIFEST_NAME, MANIFEST_VERSION, OUTPUT_PATH, and OVERRIDES environment variables, constructs the mcop-manifest CLI command with appropriate flags, and executes the manifest
              3. Manifest Execution – The main.py CLI entry point loads the manifest from DynamoDB (specific version or latest), applies runtime parameter overrides on top of manifest-level overrides, executes each workflow sequentially, and updates the execution status in DynamoDB to COMPLETED or FAILED with error details
              4. Status Tracking – Throughout execution, the container updates the execution record in DynamoDB with status changes (RUNNING, COMPLETED, FAILED) and completion timestamps. This enables external systems to monitor execution progress by

              Blueprint

              The GitHub repo is here.

              Repository Structure:

              src/ – Core Python package containing all MCOP modules including adapters, primitives, manifests, workflows, patterns, configuration, and repository implementations. This is the heart of the MCOP platform containing all business logic and data access layers

              src/adapter/ – Adapter module implementing the provider-to-primitive-type mapping logic. Contains the Adapter class that uses explicit provider and primitive_type fields to instantiate the correct primitive implementations

              src/primitive/ – Primitive module with S3BackedPrimitive, LocalPrimitive, TerraformPrimitive, and JenkinsPrimitive classes. Primitives download templates from S3, parse configuration files, and generate infrastructure artifacts

              src/manifest/ – Manifest module implementing the top-level orchestration logic with ManifestBase and Manifest classes. Handles workflow execution, parameter substitution, and configuration management

              src/workflow/ – Workflow module with WorkflowBase and DeployPipelineWorkflow classes. Manages pattern execution and Terraform backend configuration for state storage

              src/pattern/ – Pattern module combining primitives with parameter validation. Includes the Pattern class and ParameterValidator for DynamoDB-based validation rules (enum, regex, string matching)

              src/repository/ – Repository module with abstract base classes and concrete implementations for DynamoDB access. Includes ManifestRepository, WorkflowRepository, PatternRepository, AdapterRepository, PrimitiveRepository, and ParameterValidationRepository with versioned schema support

              src/config/ – Configuration module with PrimitiveConfig class for S3 bucket, working directory, and AWS region settings from environment variables

              src/examples/ – Example scripts including setup_validation_rules.py for loading parameter validation rules from YAML into DynamoDB

              src/test/ – Comprehensive test suite with pytest fixtures, mocked AWS services, and unit tests for all major components

              bin/ – Command-line tools and utilities including mcop-cli.py (CRUD operations with version management), trigger_manifest.py (Lambda invocation for manifest execution), migrate_adapters.py and migrate_patterns.py (schema migration), backup_dynamodb.py and restore_dynamodb.py (table backup/restore), and build_and_push_image.sh (Docker image build and ECR push)

              terraform/mcop/ – Terraform infrastructure definitions including Dockerfile (multi-stage build with Python wheel), entrypoint.sh (container startup script reading environment variables), and lambda_function.py (ECS task trigger with execution tracking)

              Benefits

              • Accelerated Infrastructure Deployment – Reusable, versioned primitives and patterns dramatically reduce the time required to deploy new applications by eliminating the need to recreate infrastructure code for each project
              • Multi-Cloud Flexibility – Adapter-based architecture enables organizations to support multiple cloud providers (AWS, Azure, GCP) without rewriting infrastructure definitions, reducing vendor lock-in risks
              • Version Control at Every Layer – Comprehensive versioning for primitives, patterns, workflows, and manifests enables safe testing of infrastructure changes, reliable rollbacks, and maintenance of multiple environment configurations simultaneously
              • Centralized Governance – DynamoDB-based parameter validation rules enforce organizational standards automatically across all deployments, enabling security and compliance teams to implement controls without manual review of every infrastructure change
              • Scalable Execution Model – Serverless ECS Fargate execution with Lambda triggers provides automatic scaling for concurrent deployments without infrastructure management overhead
              • Infrastructure Reusability – Component-based architecture promotes creation of tested, standardized infrastructure building blocks that teams across the organization can discover and reuse
              • Reduced Configuration Errors – Parameter validation, type checking, and automated substitution mechanisms catch configuration errors before deployment, preventing failed deployments and reducing troubleshooting time
              • Clear Separation of Concerns – Hierarchical architecture enables different teams to work at appropriate abstraction levels—platform teams build primitives, application teams compose patterns, operations teams manage configurations
              • Comprehensive Audit Trail – Execution records in DynamoDB track all manifest executions with status, timestamps, and parameters, providing complete visibility into infrastructure deployment history
              • Flexible Parameter Management – Multi-level parameter override system (manifest configuration, manifest overrides, runtime overrides) enables environment-specific customization without duplicating infrastructure definitions

              End Result

              The Multi-Cloud Orchestration Platform (MCOP) delivers a comprehensive solution for organizations seeking to standardize and scale infrastructure deployment across multiple cloud providers and environments. By implementing a hierarchical component model with primitives, adapters, patterns, workflows, and manifests, MCOP separates infrastructure concerns into reusable building blocks that teams can compose and customize without duplicating code. The versioned metadata repository in DynamoDB provides complete visibility and control over infrastructure definitions, while parameter validation enforces organizational standards automatically. The serverless execution infrastructure built on Lambda and ECS Fargate enables scalable, automated deployments that integrate seamlessly with existing CI/CD pipelines. Organizations implementing MCOP gain the ability to deploy infrastructure faster, maintain consistency across environments, enforce governance without sacrificing flexibility, and evolve their infrastructure definitions safely through comprehensive version management. The platform creates a foundation for infrastructure-as-code practices that scale from small teams to enterprise-wide adoption.
